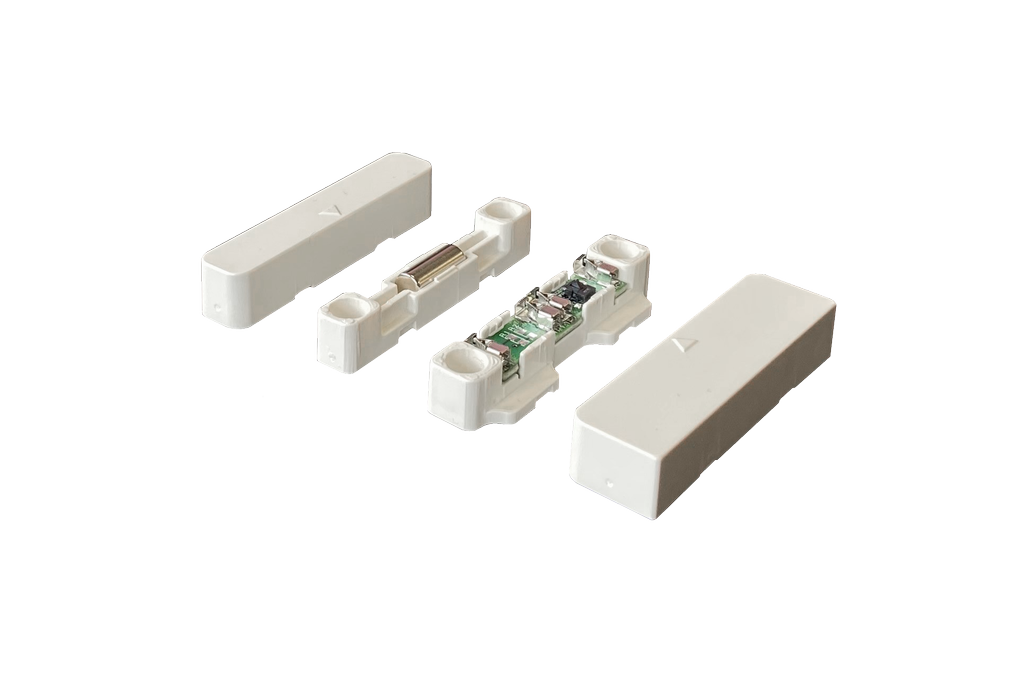

UTKCS10 – Magnetic contact for surface installation

DESCRIPTION

Magnetic sensor for surface installation on non-ferromagnetic windows and doors with quick connection to terminals. Section of usable conductors from AWG26 (0.128 mm2) to AWG18 (0.82 mm2). Concealed fixing screws protected by anti-opening tampers. Provision for cable passage both on the sides and on the bottom.
EN50131-2-6: Grado 2 Classe II

TECNICAL INFORMATIONS

Minimum gap:

20mm

Material:

ABS/white

Dimension:

61 × 17 × 11mm

Connection:

Clamp

Package:

10 pz

Working temperature:

-10°C / +40°C

VARIANTS

UTKCS10MR

Brown colour

UTKCS10NR

Black colour

CERTIFICATES

RoHS EN 50131
